TC-5060B TEM Cell (400MHz~3GHz)

  Product Description

Our TC-5060B,  TEM Cell generates a uniform Electro- Magnetic field for testing small RF devices such as pagers, GPS Receivers, Portable phones, PDAs, etc. Through the input port, an external test signal may be applied to TC-5060B to generate a predictable TEM test field inside the cell.  The radiation field can also be picked up through the input port using a test receiver.  Both RF and data feed throughs are provided.  Its  unique, compact design is intended for medium accuracy measurements.

                                           Click to enlarge

  Applications
  • Receiver sensitivity testing.
  • Transmitter Radiated Power Test.
  • EMI EMS tests for small UHF devices.
  • 900MHz Pager, Portable Phones, PHS, PCS, GSM, WLL, CDMA, DECT, PDA
  Key Features
  • Radiation and susceptibility test
  • Broadband TEM Cell up to 3 GHz
  • Small Size, Small footprint for Desktop application
  • High Effective Shielding
  • Specifically designed for all types of portable phones
  • D-Sub 25pin Connector
  • SMA Type RF Connector
   Specifications

Electrical
VSWR : < 1.7, 400 MHz ~ 3 GHz
Effective Shielding :
    > 80dB (typically), >100dB (Leakage Test)
Effective Cell Height : 220 mm
Field Strength at Test Point :
     13 dB uV/m @ 1 uV input

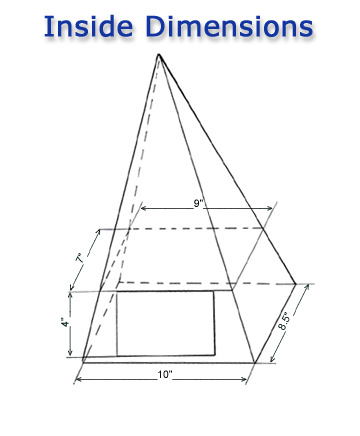

Mechanical
Dimension : 344(W) x 380(D) x 715(H) [mm] or 13 1/2"(W) x 15"(D) x 28"(H)
Door Size : 160(W) x 90(H) [mm]
Weight Total : 19 kg
