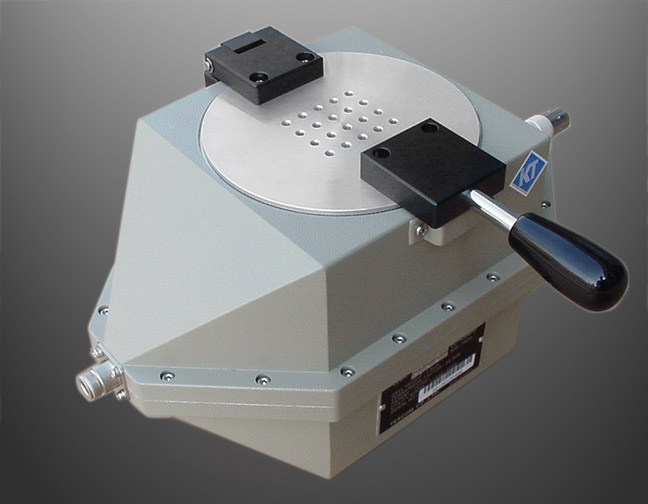

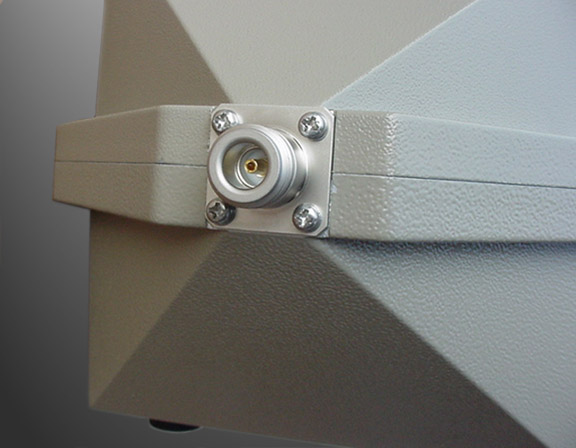

TC-5010B MINI TEM Cell

  Product Description

The TC-5010B Mini TEM Cell is a highly accurate  electromagnetic field generation apparatus designed for testing small RF devices such as wireless pagers. With an external signal generator the TC-5010B can produce an accurate TEM test field inside the cell .  Our  unique patented top access method allows adjustments of the DUT from the top without compromising shielding effectiveness.



                              ( Click  to enlarge )

  Applications
  • RF Product Development Lab
    - EMI or EMS testing of small parts and
      sub-assemblies.
    - Small receiver sensitivity testing.
    - Small transmitter power measurement.
  • Pager Production
    Pager sensitivity testing and adjustment tool, used as an accurate antenna jig.
  • Quality Assurance
    Pager sensitivity test, EMI/EMS tests for small RF devices, DC-DC Converter EMI test.
  • Pager Importer/Exporter - IQC, OQC tool.
  • Pager Service Center - Service tool.
  Specifications

Freq. Range DC to 1 GHz,
usable up to 1.5 GHz
VSWR < 1.2, DC to 1GHz,
typically 1.1
Effective Shielding > 70 dB, typically 80dB
Thru Loss < 0.2 dB, DC to 1 GHz
Conversion Factor 13.33 V/m
(= 22.5 dBV/m)
Dimension 380(W) x 185(D) x190(H)[mm],

or 15" x 7 1/4" x 7 1/3".

  Improvements from previous model

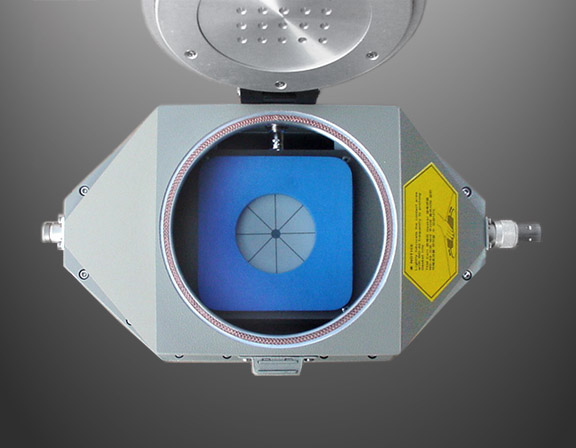

           1. Superior RF isolation by using double shielding around the hatch

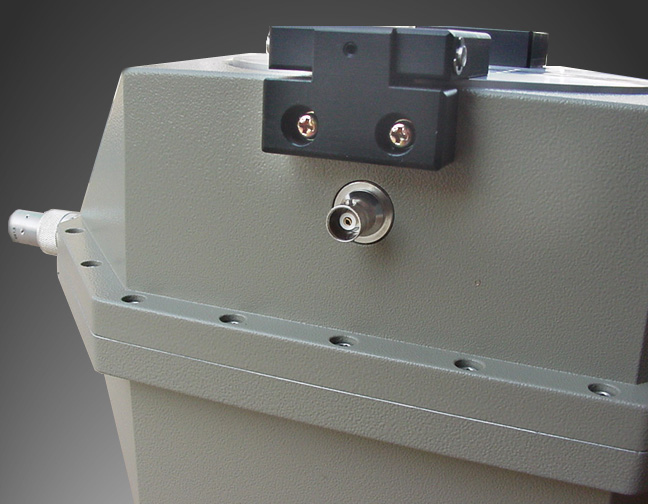

           2. The TEM Cell Lid is pulled down by Magnetic Lock for positive contact between
               the lid and the secondary gasket.

  TC-5010B Accessories

TC-5010B Option 001

Pager Adjustment Fixture
holds pager, Probes IF & Audio, Used inside TEM Cell

TC-5010B Option 002

Adjustment lid for TC-5010B, >50dB Shielding,
10mmØ large holes for easy viewing and access

TC-5010B Option 003

Replacement Shielding Gasket (10EA)
